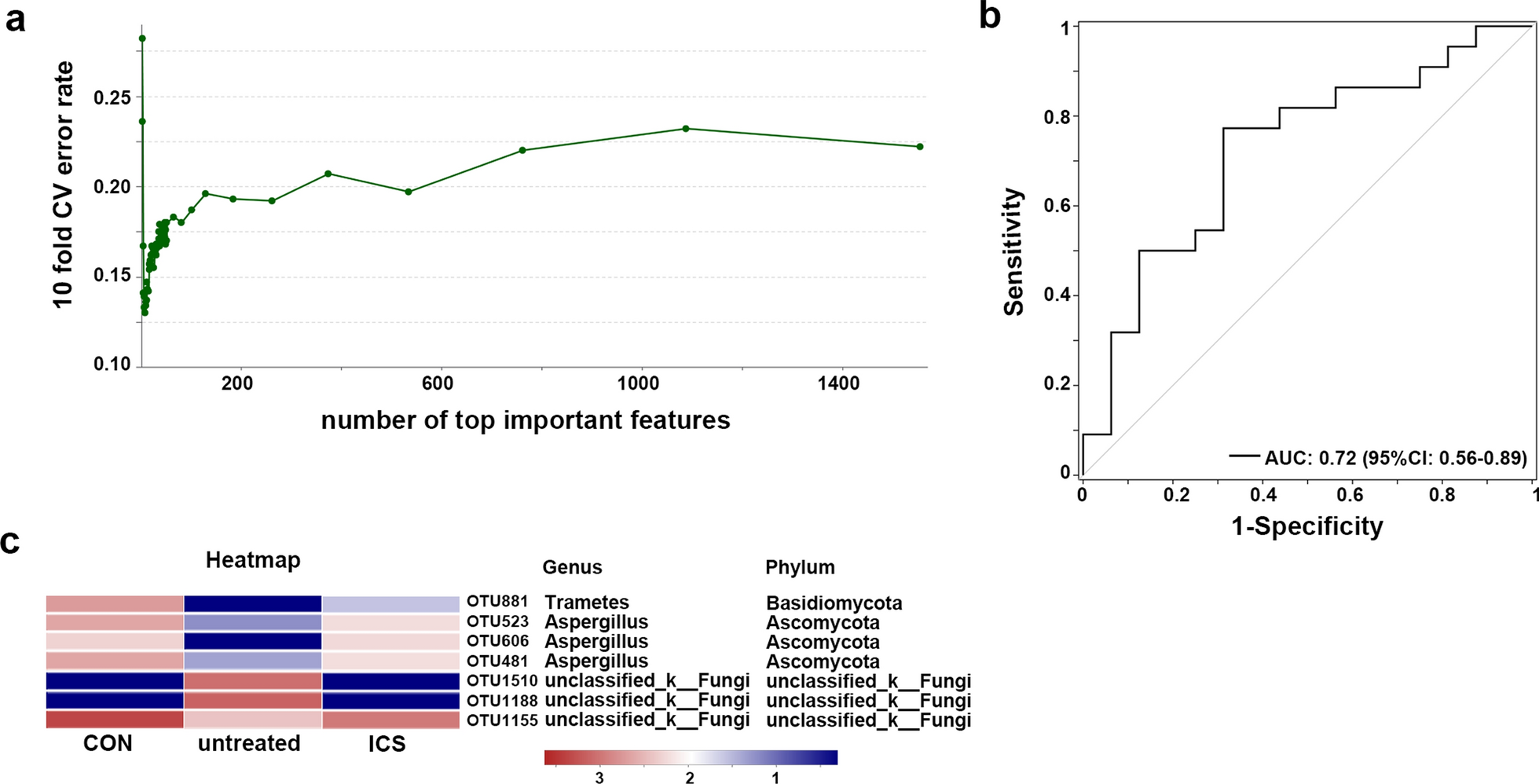

Fig. 3
From: Fungal and bacterial microbiome dysbiosis and imbalance of trans-kingdom network in asthma
Biomarkers detected in airway mycobiome and comparisons of these biomarkers. a Prediction models using Random Forest (RF). X-axis represents the number of important species (variables) ranking top n, y-axis represents the corresponding prediction error rate using ten-fold cross validation (CV). b The Receiver Operating Characteristic (ROC) curve for the random forest model using the 7 OTUs. c The heat map showed the relative abundance of these biomarkers (mycobiome) in different groups
